Hi there,

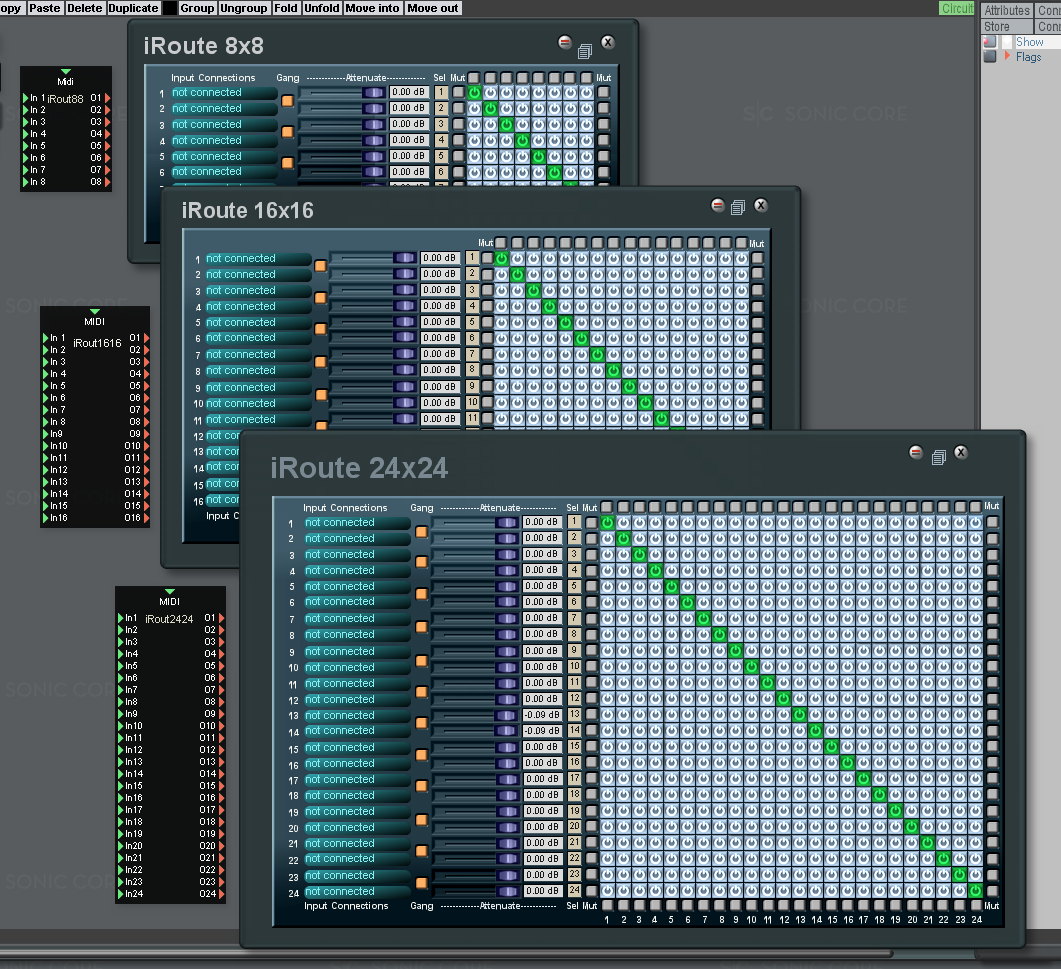

A new/updated set of routing devices I hope you find useful.
This lot has a number of improvements, including presets and midi control capabilities.
I have also added ganging of stereo inputs and mutes for each input channel.
The channel text fields can be dragged to select an output.
You can also click on the LEDs to select other outputs (bear in mind that this only applies until you select another output via the text field, therefore if you need these configurations, save them as presets).
regards
maus

great, thanks maus!

These are amazing, thank you

Really nice tools ! thanks !

Lean, mean and clean! Thank you!!!!

awesome!

Thanks mausmuso !
Really necessary !

Nice stuff that looks great too.

Thanks

Thank you soo much! Just been creating a new project and needed a midi controlled 1 to 2 switch.

Helped me out massively!

Very useful !

Just wanted to say that on my xite, matrix settings are not saved with the project. Is it normal ?

Hi Jopo,
Which version of the matrix are you using?
I will check next time I am in the studio
Regards
maus

Hi Mausmuso !

It's the smalest one : the 8x8 (I don't know if the 2 other matrix have the same behavior). I tried to recall the preset with a program change but no luck.
So I assign midi cc to each matrix part I need to set and it works. But it would be much more easier to find the matrix ready when loading the project !

Those matrix are very useful ! I can use them like a small mixer and send any input anywhere !

Thanks a lot, Mausmuso !

I had a quick look last night and there is something wrong with the presets on the 24x24 matrix.
When I get a chance I will fix them.
I might also reskin them
maus

Ladies & Gentlemen..... Maus

YEP ~~ 1,2,meins !THKS

JoPo wrote:Very useful !

Just wanted to say that on my xite, matrix settings are not saved with the project. Is it normal ?

Hi JoPo,
I just twigged what the problem might be.
The Text Faders clear all the LED's except the number they are set to, so when recalling a project the text fader parameters clear all but their allocated numbers.

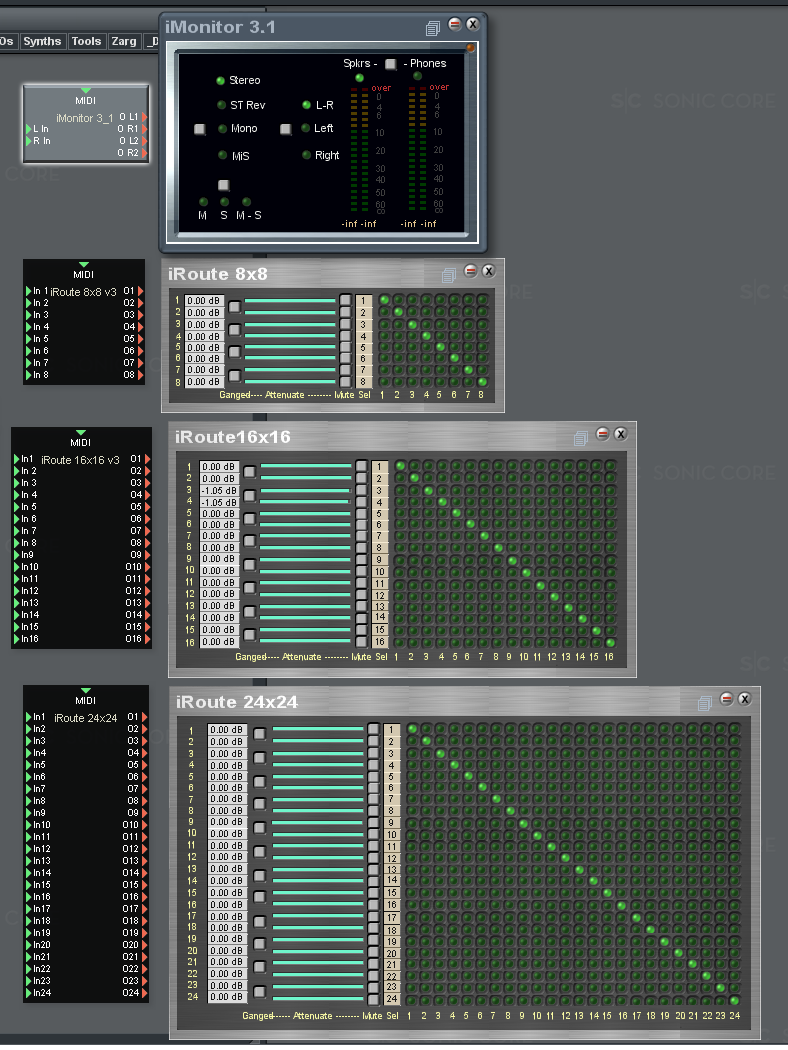

I have rebuilt these devices with new panels (see below).
Would you like me to leave the text faders off and so you can only select each LED manually?
That way it will (I think) save the all of the parameters in the project.
My original thought was to be able to move outputs via text fader Midi CC's, but that may not be all that useful?
The devices below all work, but I have a little work to do to finish building the Parameters and PresetLists.
I have added mutes to the outputs and connection info for the inputs, otherwise they are pretty much the same as before.
I will release them shortly
maus

Me want dat. Or else me send big feline named Brutus after youse.

This is really nice, Mausmuso !

I think that the best thing to do is to let choice users ! So you could release one matrix of each... In fact, to have the matrix ready on my actual project, I assigned a midi CC to the text number, so it seems to be useful because midi CC are recalled perfectly. Now, settings should be recalled correctly when loading the Scope project... If we had both routing matrix, we would have both advantages, choice and if one uses only one version, one can delete the other..! So I suggest you to release both version !

I can see you changed the colors and button shape, did you ? The gui is even more nice on the jpg ! More clear and fresh-coloured !

Don't forget to warn us when ready !

Ditto & meow.

oh yeah that is cool!
