Lämpchen! Lämpchen!
Christmas gift.

MVV16 free optical MidiVoiceView x16


[~~]
# Midi PolyNote Control overview to check your Performance
+Off (0 dsp) ~ 16Voices max (autonomous)
+Midi Channel In Filter

VU2 precision analog controlview


[~~]
# useful anlog voltmeter allows you to work perfectly with parameters.
+2x (Mono), linked (Stereo)
+Cascade Connection
+Configure Curve and Sensitivity.
+Max Pegel Hold
+Header Channel Name (Info Text)
Bring more Light in your ModPatch, for a better workflow in S|C Modular ...

Thank you again.

FlipFlop


[~~]
# every Event will trigger Output FlipFlop 1Bit
Examples:
# Fader/Pot/Knob/Value progress toggel Gate or Switch
# built your own counter with BC Async Event Count module eg.
# take "out" padsocket indicator as controlview/actionlog for Fader/Pot/Knob/Value progress
... for a better workflow in S|C Modular ...

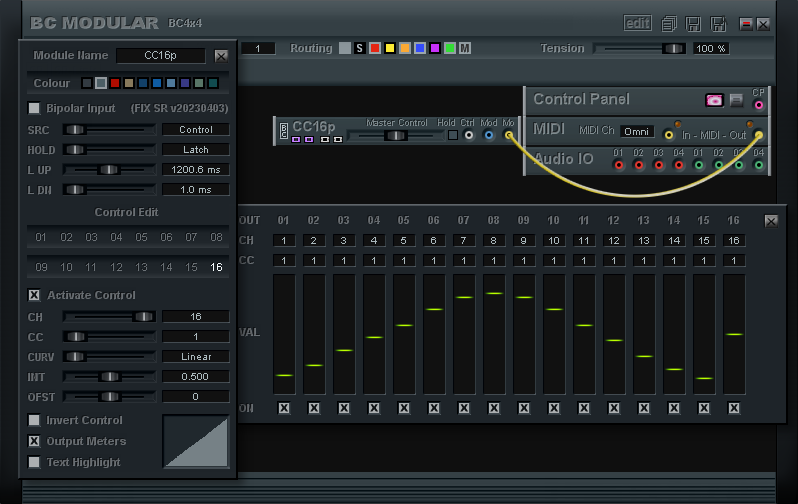

CC16p fixed +extensions
your task: find the easter egg password in this post

[~~]
# Master Control / BC-Pipe 16 Channel to 16 Midi CC
+ Select Input and Source fixed (tested in Scope v4-7)
+ BC-Pipe Offset 1~8, 9~16 (32Bit uni) purple
+ BC-Pipe Monitor 1~8, 9~16 (32Bit uni) white
Examples:
# Midi Remote Organ Drawbar or Mixer Fader Group eg., take BC-Pipe Offset 32Bit uni for Channel Fader and Master Control as Group Fader
# Master Control Async/Sync smooth to BC-Pipe Monitor Value 32Bit uni
# direct Convert BC-Pipe Monitor Channel 32Bit uni to Midi CC 7Bit
... for a better workflow in S|C Modular ...

a Triubute to Sharc Simon + Dawman Jim
thx guy`s, will see you in heaven, Love You!

This looks great! Thank you for your continued contributions!!!

Label3a free


[~~]
# easy Label module
+cascade engine
+today, my B-day, and i want to give you presents .
..
...
#Tutorial: how work the Textstring Engine
connect the lightblue Module Pad "Strg" with other SR-modules with this TextEngine (cascade)
Now press the button "Write Mode" when you will send/receive Textstring.
the last activated button will send his Textstring to the connected modules.
after activate all "Write Mode" buttons, you can write in one module and will see the result in "mirror"-module
(this engine is also for future module but you can try it now in your MODULAR shell.)

#Tutorial: how work the Color Presetbank
select a preset: click on the red number, hold mouse and move up/down
you can save your own Color in up to 32 User Presets
connect the white Module Pad "Free Color" with a Fader, Knob e.g.
now select a Preset and see the color value.
move the controller and find your favorite color, or tipp in the value in a connected Textfader! (see FreeColorChart-SR-20221224a2.pdf)
is the result in your Presetbank, the Presetnumber [1~32] will show.
is the result not in your Presetbank, it will show [X]
Now press the button "Write Color", the Preset logic ist activ!
select your final Presetnumber and send with yor connected Controller your Color Value!
Repress "Write Color", for permanent save!
You can all Presets change in realtime when "Write Color" is activ
finally, combine other SR-modules with this ColorEngine (cascade)

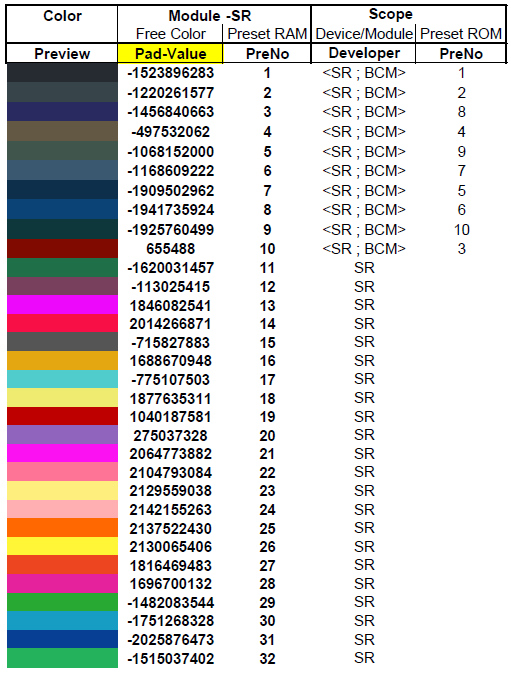

#Free Color Sheet

It's getting better and better.

Happy Birthday, have a wonderful day. And thank you for the labels and tutorial

Yeah, thanks a lot and happy birthday!

Thank for all contributions
Happy Birthday

Happy birthday, Spielraum,- have a nice party !
Thx a lot for all your input here,-



Bud

t_tangent wrote: Sat Jun 03, 2023 6:52 am Happy Birthday, have a wonderful day.

sunmachine wrote: Sat Jun 03, 2023 10:08 am happy birthday!

Rafe wrote: Sat Jun 03, 2023 12:35 pm Happy Birthday

Bud Weiser wrote: Sat Jun 03, 2023 1:01 pm Happy birthday

yep, i had a wonderful weekend
many thx

tonatona wrote: Sat Jun 03, 2023 5:20 am It's getting better and better.

yep, holger have now a big postit on your office table...

Spielraum wrote: Mon Jun 05, 2023 4:58 am

Haha, nice. Reminds me somehow of Lola Marsh's video 'Only For A Moment' that I could watch for hours.

https://www.youtube.com/watch?v=zN5Id6_P-Qk

MinMaxHoldBi free


[~~]
# easy ValHold module (32bit bipolar)
+extract +/- peak value
+BerlinModular.mp3 .
..
...
#Tutorial: work with Min/Max
click on the reset button will refresh and capture +/- peak.

Value extraction:
>click in the Min/Max value textfield,
press [Strg]+[A] to select Value String
press [Strg]+[C] to copy in clipboard
press [Strg]+[V] to paste from clipboard

>send the Min/Max result with white Module Pad Async Out

HAPPY BIRTHDAY SCOPE DSP FARM [08.1998 ~ 08.2023]
auf die nächsten 25 Jahre, three cheers!
♥

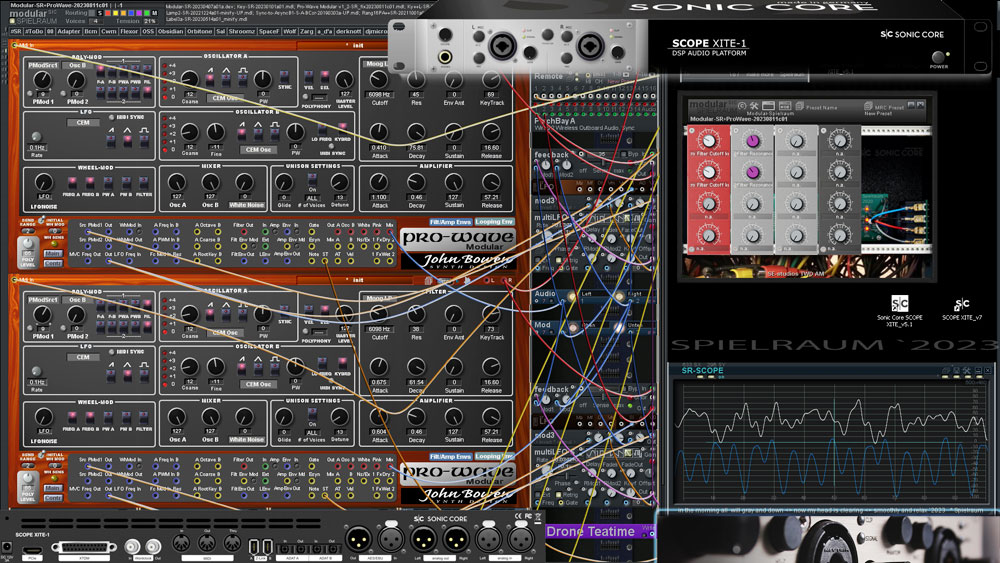

Spielraum Ambient Drone Jam Session called "ZARG" morning
Recorded: 12.08.2023
Modular Blockbuster Ambient Drone, like John Bowen Synth Sound!
youtube >> SC-ModularSR-ZargProWave-Drone-Spielraum-20230812
.

Ducker/Gater free


[~~]
# easy Duck/Gate module (Midi Trigger)
+Attack/Release
+Slope
+Bias/Intensity
+Midi Channel Filter
+Midi Note Define
+Midi Note Velocity to Intensity .
..
...
#WORK with Ducking module
Attack, Release, Slope Curve and Bias
control can be used to scale the incoming Midi Note Velocity,
so the velocity curve of the Midi data can be recalibrated to some extent
Tip: with full Bias and Max Velocity you have a classic Midi Gater for your next Trance,Ambient,Glitch Production.
Or take it to remake a great Phil Collins Snare Room Gate

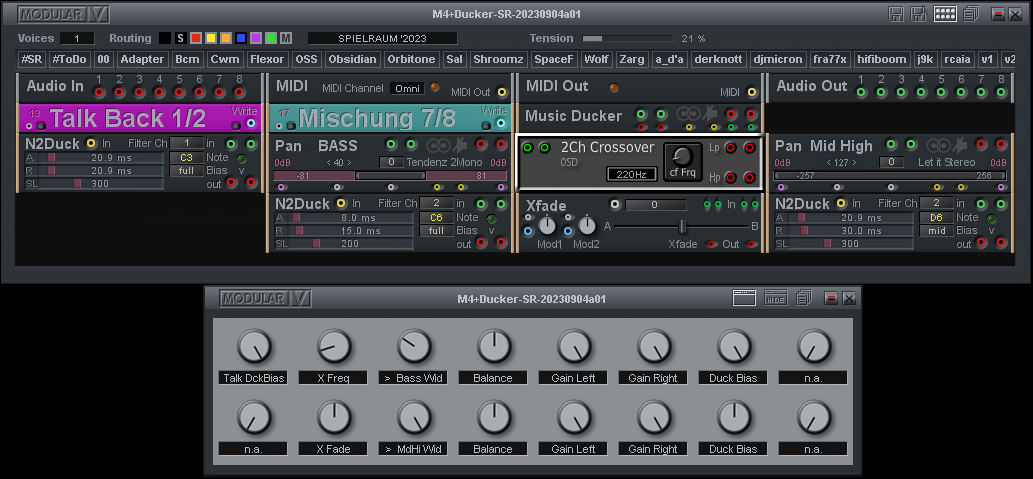

#MODULAR IV StartUp Patch
> Line 1/2: Talk Back Ducker/Gater
> Line: 7/8: Music 2Frq Way Ducker
. ...
..
.
#STUDIO Basics
de-emphasis of background disturbances, while 'Ducking' mode - normally a feature for voiceover work - can also be used creatively to deemphasise audio which might cloud a mix when there's too much going on.

Ducking is a process is used extensively in voice over production: essentially the level of one audio channel controls the attenuation of another, so it is a good mechanism to automatically reduce the level of music while someone speaks – typically a radio DJ talking over the top of a background track.
However ducking can also be used creatively to give extra prominence to a particular track in a mix, or to de-emphasize effects which might cloud a mix when there`s too much going on. For example, within a busy mix a vocal track may control the subtle ducking of a guitar track to gently aid the distinction of the voice. Or a vocal track with heavy reverb can be used to control the ducking of the reverb effect on a guitar track, so that the two reverb effects do not clash within the mix.
Many years i take my Alesis 3630 to make Daft Punk Style House Rhythm, with Kic and Bass PingPong Ducking
Now you can check my StartUp M4 Patch in Folder "Patches" ...

Spielraum ' 2023

Dear Spielraum,
Thank you so much for all these Amazing Devices!!
I am using Modular IV so much and your devices are Perfects!!!
Xite-1 with Modular IV is a Unique & Powerful Musical Farm thanks to your Beautiful devices

Wish you all the Best,

Loren

At the beginning of autumn I would like to deepen my love for the sound of Vangelis and Ultravox, with the XITE1 Jam Session!
Thank you for all your impressions!
♫
youtube >> SC-ModularSR-SEQ-Autumn-Spielraum-20230923
~
