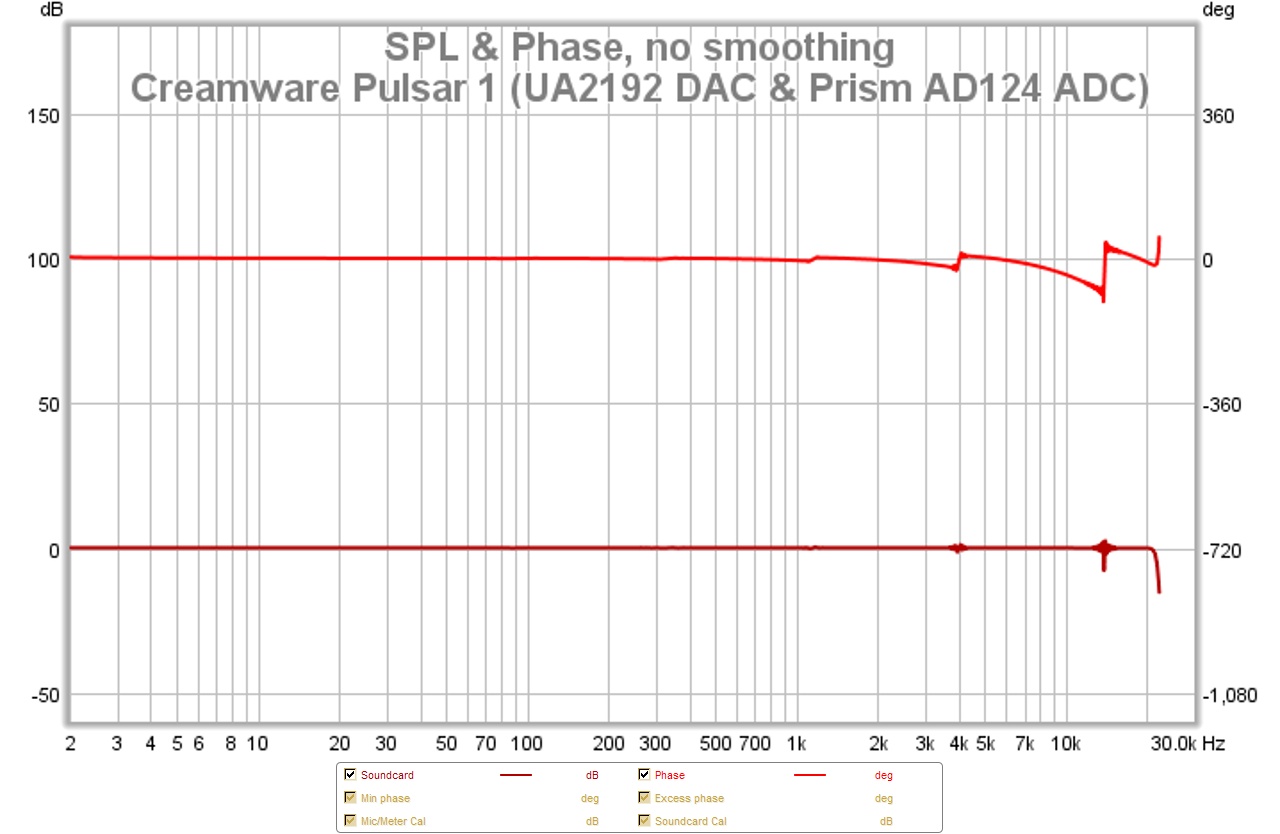

So I did some measurement of SPL and Phase response doing a loop from card to UA2192 to Prism AD124 and back. The card is clocked from Prism AD124. The sharp 6dB ripple dip is at 13khz.

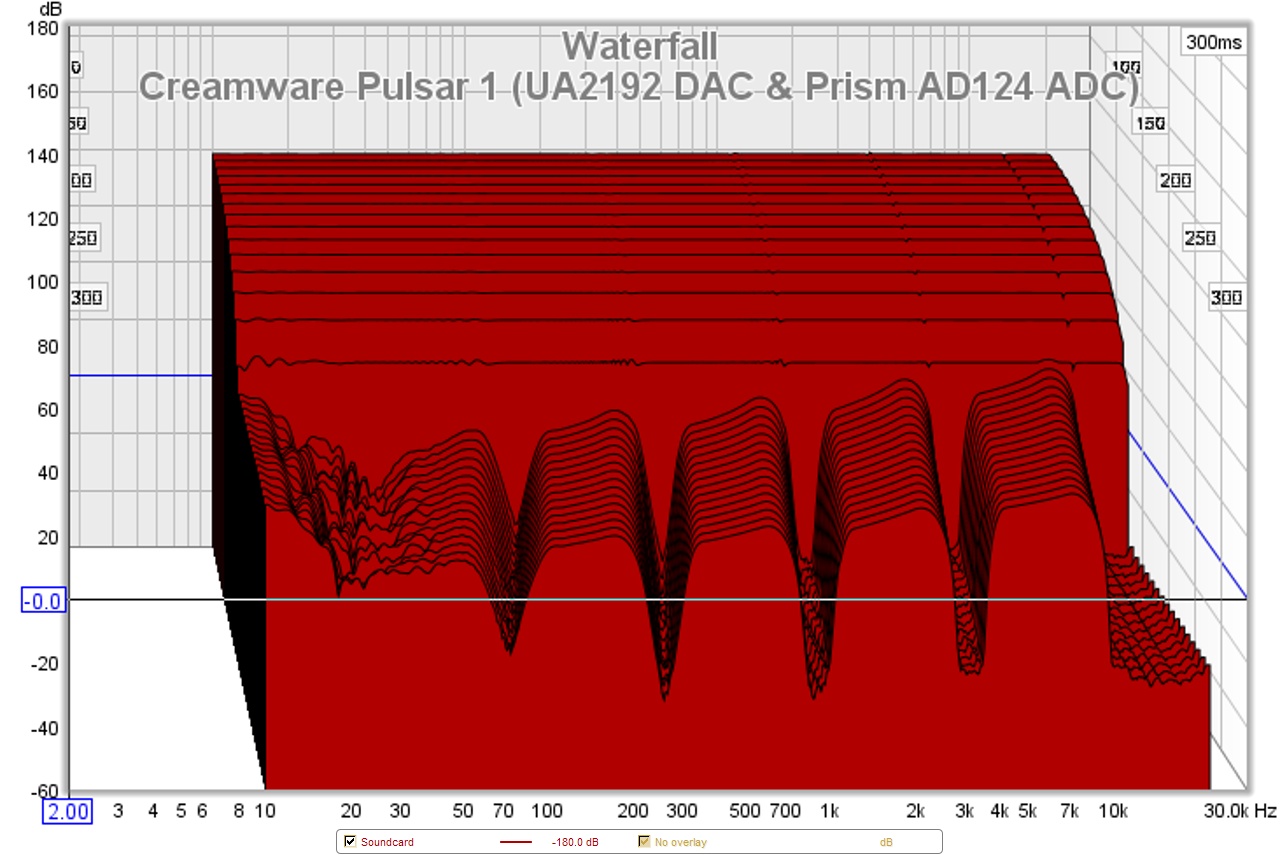

Creamware Pulsar 1 REW measurement graphs
-
quantum
- Posts: 159
- Joined: Fri May 21, 2010 3:17 am
- Location: Portland, Maine, USA
- Contact:
Creamware Pulsar 1 REW measurement graphs
You do not have the required permissions to view the files attached to this post.
