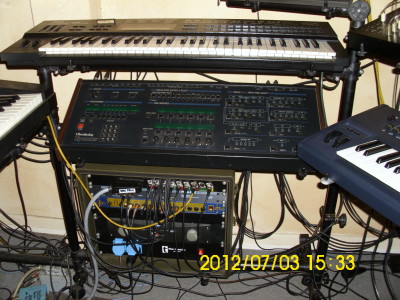

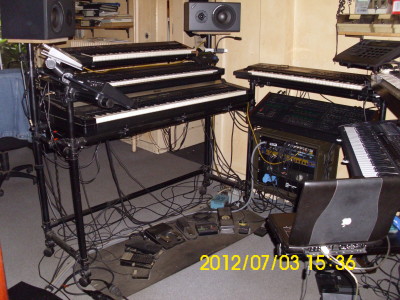

Synth Wing #1 rack content - top to bottom:

• Custom made MIDI patchpay w/ MIDI multicore connector

• Miditemp PMM88E MIDI processor matrix switcher 8x8

• 1HU rack spacer (ventilation)

• Alesis RA-150 power amp (for Alesis Monitor One mk II passive speakers)

• T-Racks Power Distributor

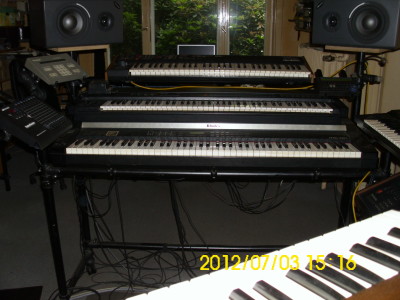

Synth Wing #1 Keys & tone generator:

• Yamaha DX7mkIIFD

• Oberheim Xpander

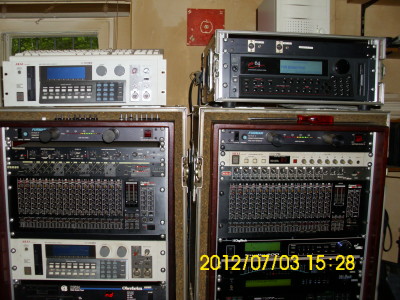

Rack left (top view) content - from bottom to top

• Oberheim DPX-1

• Akai S-1100

• 0.5HU rack spacer

• Roland M-160 Line Mixer 16 Channel

• MAM KM122 12 Channel Line Mixer

• Furman PL Plus E line conditioner/ rack light

•  on top:

• Akai S-1100 spare machine

Rack right (top view) content - from bottom to top

• Korg SG Rack

• Digitech Studio 400 multi FX

• 0,5HU rack spacer

• Roland M-160 Line Mixer 16 Channel

• Rolls RM203 Line Mixer 20 input/ 10 stereo channels

• AKAI MB-76 MIDI controllable audio matrix switcher

• 0,5HU rack spacer

• Furman PL Plus E line conditioner/ rack light

• Rack on top: EMU E54 EOS sampler w/int. 500MB HD & 2 SCSI HDs in top case / custom build 2 Ch. DI, transformer balanced

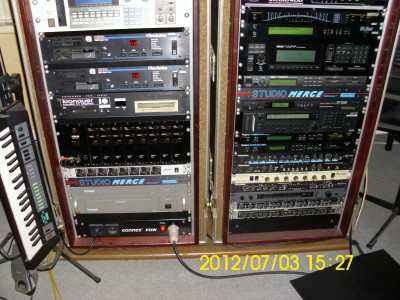

Rack left (bottom view) content - from bottom to top

• Connex POW power distributor 1HU rack spacer

• Sycologic M16/ M16X (16x32 MIDI matrix switcher) combo

• Anatek Studio Merge 8 in 1

• Behringer 8 channel denoiser for TX-816

• Yamaha TX-816

• Kronauer Syndrive (SCSI HD & CD-ROM) for AKAI S-1100

• Oberheim DPX-1 sample players w/ single out & CD-ROM options (full EMU Emulator II replacements) x 2

• AKAI S-1100 incl. all option boards

Rack right (bottom view) content - from bottom to top

• Power distributor behind blind panel

• Behringer 2-Channel Denoiser

• Behringer Splitter/Mixer

• Dynacord DLS-300 Leslie sim

• Rocktron 300A mono compressor/HUSH II

• Chandler Tube Driver

• Rocktron ProChorus

• Rocktron GAP-1 preamp

• Roland U220 & D-110 (now again replaced by Roland D550 w/ Musitronics speed kit, multimode & memory expansion

• Korg M1R ex ROMpler

• Korg Wavestation SR vector synth

• Anatek Studio Merge 8 in 1

• Yamaha TG500 ROMpler

• Yamaha TG77 AFM synth

• Korg SG Rack Digital Piano module

• Korg DT-1 Pro tuner

Rocktron GAP-1 and Rocktron ProChorus as 1 block can be addressed by the AKAI MB-76 audio matrix switcher in real-time for screaming lead sounds and run/return to separate input channels of the Roland M-160 Line Mixer w/ 4 aux sends which feed the Digitech Studio 400 multi FX unit.

Same way and via the AKAI MB-76 again, the Leslie simulator block is separately addressable too. This block is in this SPECIAL order:

• Rocktron 300A Compressor unit > Chandler Tube Driver 19" > Rocktron 300A HUSH II unit > Dynacord DLS300 Leslie simulator.

The application for this is that the Rocktron 300A has separate inputs and outputs for the compressor and the single ended noise reduction.  So it's do-able with only 1 HU unit versus two separate pieces of gear.  And that's why I have it.

I access AKAI MB-76 audio Ins (there are 7) by running DX7mkIIFD audio outs directly to the AKAI MB-76, same with single out #4 of KORG M1R ex and the Minimoog D audio out.  So these three instruments are routable to the effects blocks described above or directly to different or dedicated Roland M-160 Line Mixer input channels, because there are 6 outputs on the AKAI MB-76 (2 mono outputs run to the FX blocks with 4 outputs for DX7mkII FD direct to mixer).  The Minimoog D mono and M1R out #4 mono are connected direct to mixer when FX blocks aren't needed.  All this is switchable by MIDI program change commands transmitted from the Miditemp PMM88E.
